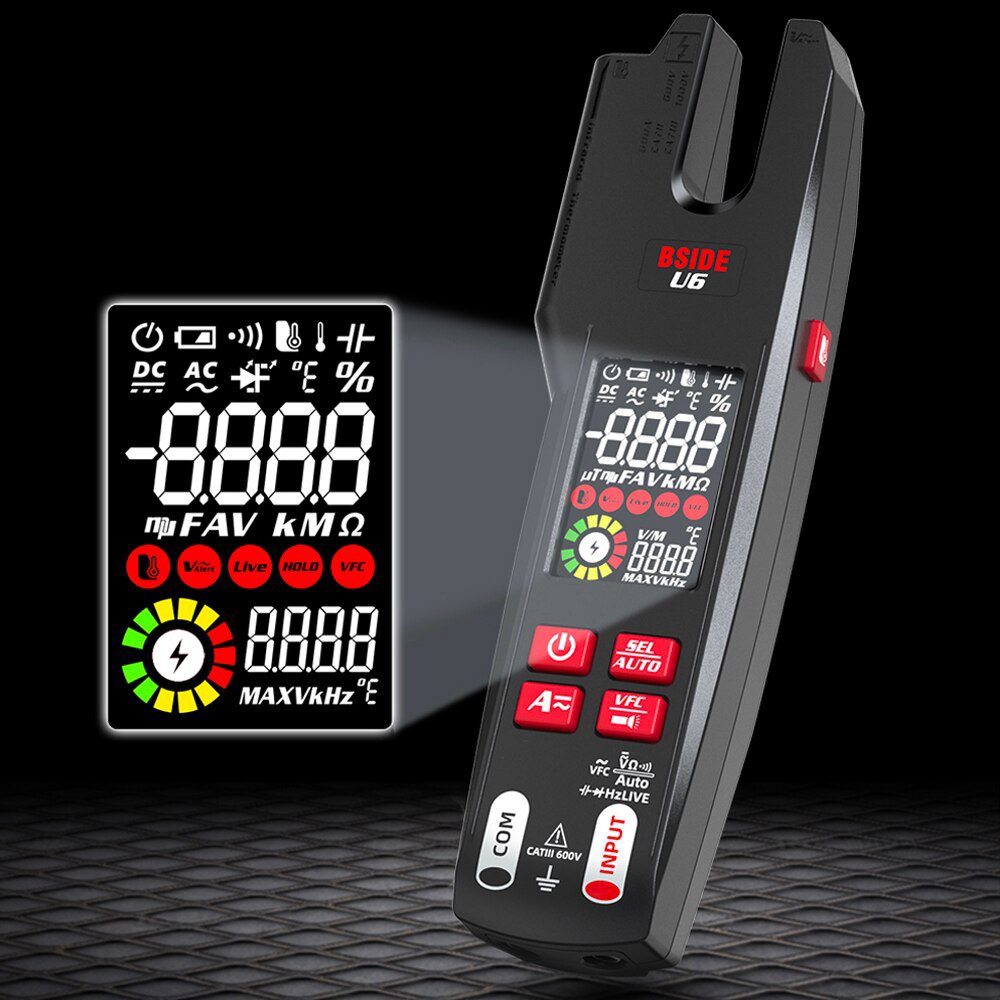

The ultimate tool for professional electricians, engineers, and electronic enthusiasts. A new generation of Smart True RMS DC/AC 600A Fork Open-Jaw digital clamp meter.
- OpenJaw design for convenient current testing and maintenance.
- Innovative dual power supply mode for extended usage.
- Intelligent and professional measurement functions.
- Infrared temperature estimation.
- Full function with gear display, analog bar multiple display.
- Perfect for professional or household use.
SPECIFICATIONS
- Display: 9999 counts
- DC current: 1-600A 0.1A ±(2.5%+5 counts)
- AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)
- DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)
- AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts)
- VFC/VFD voltage: Yes.
- Resistance: 0-10MΩ 0.1Ω ±(1.2%+3 counts)
- Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts)
- Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)
- Infrared temperature: -20℃~0℃/-4℉-32℉ 0.1℃/0.1℉ ±(3.0%+2℃/℉); 0℃~400℃/32℉-752℉ 0.1℃/0.1℉ ±(2.5%+3℃/℉)
- Diode: Measure diodes within 2.0V
- Continuity: If the resistance is less than 30Ω, the continuity beeper sounds
- Temperature: 0-50℃/32℉-122℉ ±2℃/℉
- V-Alert (non contact voltage detection): Yes
- Live wire check: Yes
- Power: USB charging (built-in rechargeable battery), 1.5V AA battery*2 (not included)
- Size: 210 x 63.7 x 33 mm
- Weight: 216 g
BENEFITS
PRECISION & ACCURACY
The Digital Clamp Meter offers precise readings with its True RMS, Auto/Manual Range. Its smart mode ensures ease of use, making it the best choice for professionals and hobbyists alike.
VERSATILITY

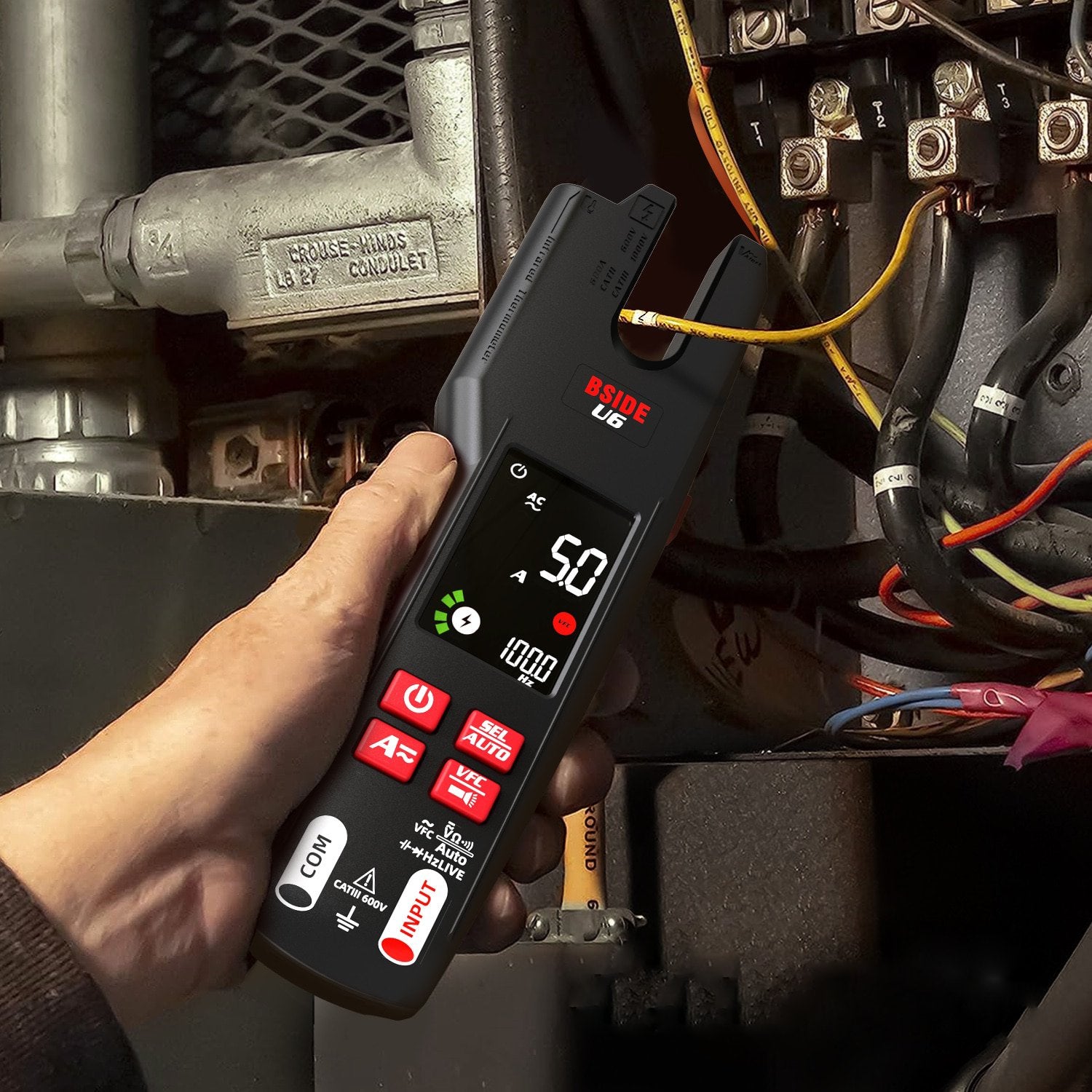

From checking voltage and current measurements when troubleshooting motors to determining fault problems in automobiles and air conditioners, this tool is comprehensive in its testing capabilities.
FEATURES
DUAL POWER SUPPLY
Supports both a built-in rechargeable battery with USB charging and a 1.5V AA battery*2 (Not included), ensuring you're always powered up and ready to go.
INFRARED TEMPERATURE MEASUREMENT
Quickly determine fault problems with its non-contact Infrared temperature measurement function. Range: -20℃~400℃/-4℉-752F.
VFC/VFD FREQUENCY CONVERSION VOLTAGE TEST
Enhanced testing capabilities with the VFC function, making it a truly new-age clamp multimeter.
PACKAGE INCLUDES
- 1 x Electronic tester Clamp meter
- 1 x Upgrade Test Lead
- 1 x Carrying Case
- 1 x User Manual
- 2 x Lithium Battery
-
1 x USB Charging Cable
