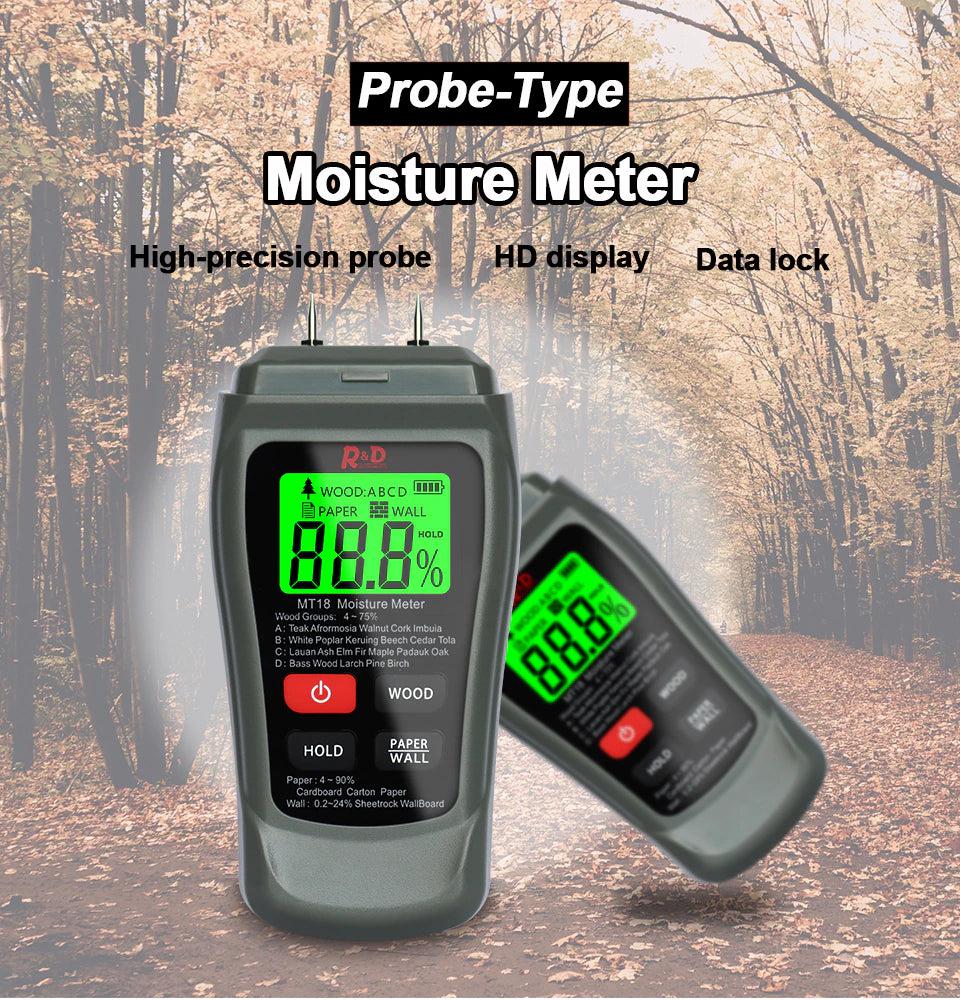

Wood Moisture Meter

Prevent Moisture Damage To Your Home

Early detection of water leakage in your wall or ceilings may prevent molds and mildews from growing in such areas. This wood moisture meter will be able to detect moisture levels higher than normal. This firewood moisture meter lets you know when something needs immediate attention before it causes more structural damage to your home.

• Automatically turns off after 15 minutes of inactivity to conserve battery.
• Measurement range of 0 to 99.9%; Resolution: 0.1%; Accuracy: 0.5%
• Simple to use; Insert the pins into the object and get results.
• Suitable for wood, floor, paper, drywall, cotton, cardboard, and so on.

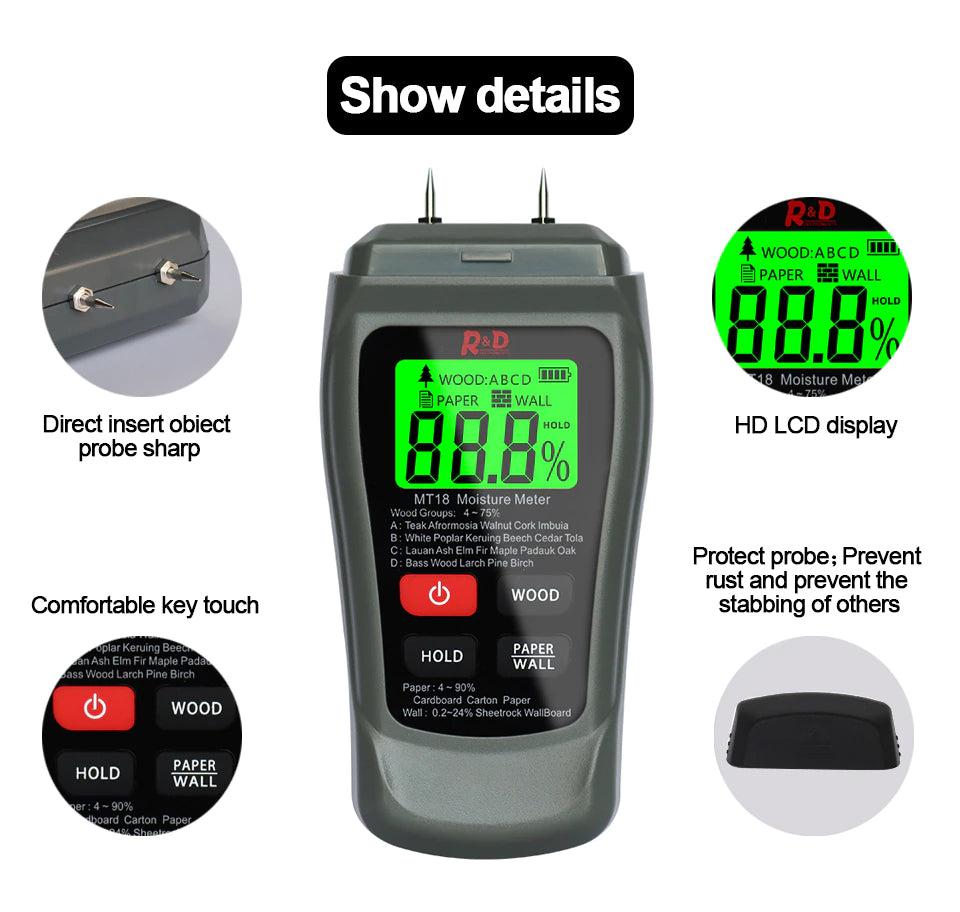

Auto Power Off & Large LCD Display

This wood moisture meter features a large LCD display that clearly shows measurement data which makes it very easy to read. Its portable size fits in one hand and even your pocket! This firewood moisture meter automatically turns off after 15 minutes of inactivity to conserve battery life.

Accurate Measurement Results

To use this moisture detector, simply insert the two pointed pins into the object you're measuring, about 5mm deep, and the device will save display the measurement results for you. This moisture meter for drywall has measurement range of 0 to 99.9%; Resolution: 0.1%; Accuracy: 0.5%. You will be assured that the data you collected is accurate.

Avoid Moisture Buildup

Prevent moisture buildups such as molds and mildews in any areas of your home or materials you are using with this moisture test. This humidity tester is suitable for measuring moisture levels in wood, carton, medicinal materials, floor, paper, concrete drywall, cotton, cardboard, and so on.

Operation:

Caution: The electrode measurement pins are extremely sharp. Users care when handling this instrument. Cover the pins with the protective cap when the instrument is not in use.

Measurement Instructions:

1. Remove the cap to expose the needle electrodes
2. Power ON the Instruments.
3. Select the appropriate wood calibration scale A, B, C, or D (See the Wood Calibration Tables later in this guide) Using the "WOOD" button.
4. Or Press the “PAPER/WALL” key to Choose Paper Mode or Wall Mode. Paper mode is used for testing Cardboard/Cartons. Wall mode is used for testing Sheetrock/Wall Board/Floor.
5. Push the needle pins into the material and observe the reading.
6. Power OFF the instrument.

Specifications:

• LCD Display With Backlight
• Principle: Electrical resistance
• Wood Range: 4~75%
• Paper Range: 4~90%
• Wall Range: 0.2~24%
• Resolution: 0.1%
• Accuracy: ±0.5%
• Electrode length: 10mm(0.4")
• Electrode pins: Integrated
• Auto Power OFF: After approx.5 minutes
• Power Supply: 2*AAA batteries
• Meter housing: ABS plastic
• Operating Temperature: 0 to 40 (32 to 104)
• Dimensions: 145 X 67 X 32mm (5.7" x 2.6" x 1.3")
• Weight: 200g (7.0 oz)

Package includes:

• 1 x  Wood moisture meter
